This article outlines the fields that map from Integration Hub to Web Central (formerly CivicEngage Central) modules when creating an integration. It also specifies the character limits that are currently set on each field.
Important Notes
- In the mapped fields below, the Integration Hub field is listed on the left, before the ">", and the Web Central field is listed on the right.
- The character limits refer to a character limitation of the Web Central field. If the Trigger item has more than that number of characters for that mapped field, the integration will error and you will be able to see those details in the Integration Hub logs.
- Anywhere there are date fields for the action, it should be expected that the mapped field should also be a date field. This is also true of URL fields, date/time fields, image fields, and locations/addresses. Anything indicated to be Boolean will need to be in standard Boolean responses (such as true or false).
Alert Center
Alert Center Trigger

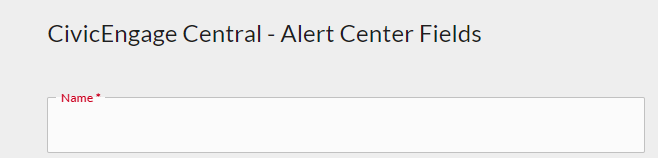

The following table outlines how the fields map in the Configure step when creating an integration in Integration Hub from the fields in the Web Central Alert Center module.
| Integration Hub Back-End | CivicEngage Central Alert Center Back-End |
|---|---|
|

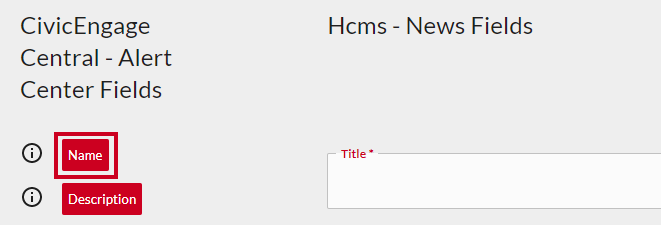

Name: |

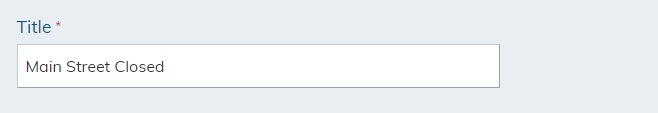

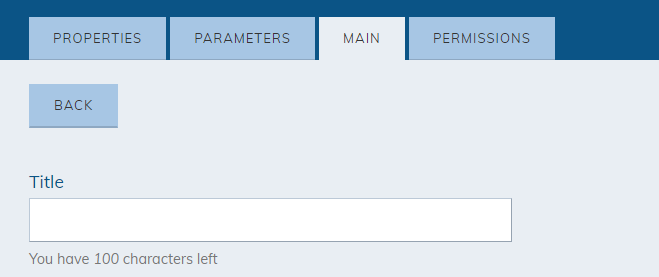

Title (100 characters): |
|
Description: |

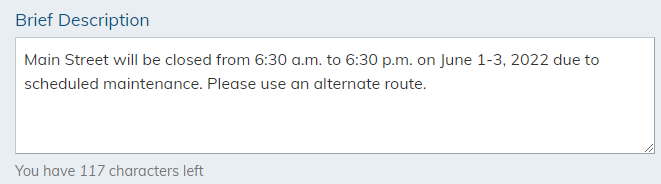

Brief Description (250 characters): |
Alert Center Action
The following table outlines how the fields map from the Configure step when creating an integration in Integration Hub to the fields in the Web Central Alert Center module.
| Integration Hub Back-End | CivicEngage Central Alert Center Back-End |
|---|---|
|
Name: |

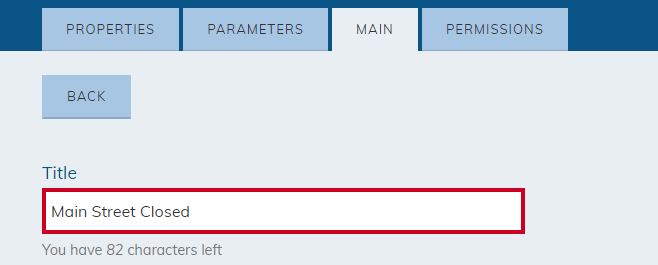

Title (100 characters): |
|
Description: |

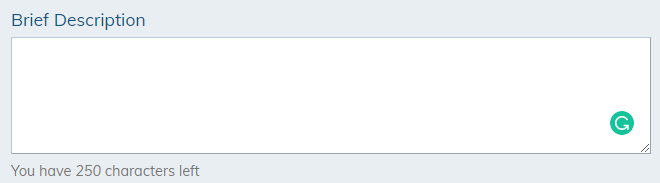

Brief Description (250 characters): |
|

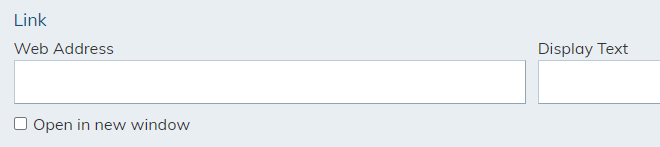

Link Url: |
Link Web Address: |
|

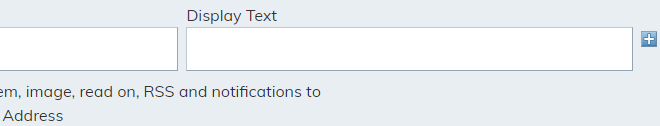

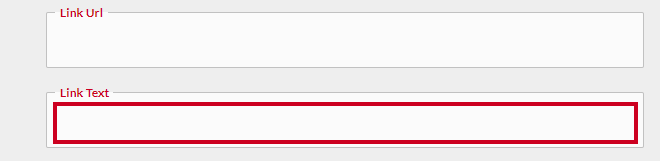

Link Text: |
Display Text (50 characters): |
Required Fields in Alert Center
- Title, Brief Description, Alert Bar Text, Link, Read on Text, Alert Start time, Alert Bar Visibility
- Alert Bar Text (20 characters)
- Read On Text (50 characters)
- Full Description (55,000+ there is no real limit at this point)
Calendar
Calendar Action
The following table outlines how the fields map from the Configure step when creating an integration in Integration Hub to the fields in the Web Central Calendar module.
| Integration Hub Back-End | CivicEngage Central Calendar Back-End |
|---|---|
|

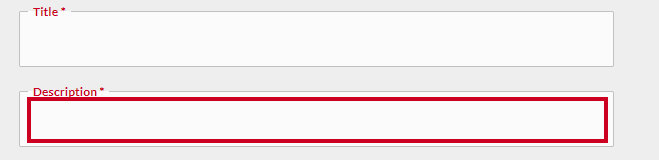

Description: |
Description (1000 characters): |
Document Center
Document Center Trigger
The following table outlines how the fields map in the Configure step when creating an integration in Integration Hub from the fields in the Web Central Document Center module.
| Integration Hub Back-End | CivicEngage Central Document Center Back-End |
|---|---|
|

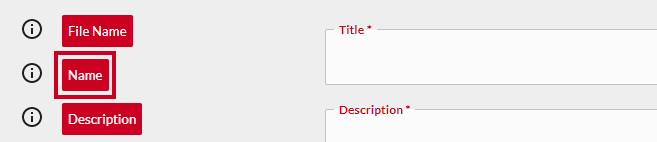

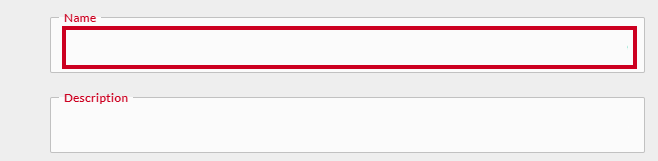

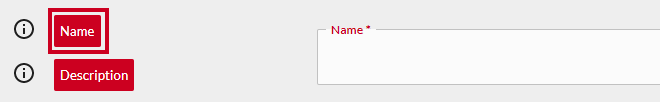

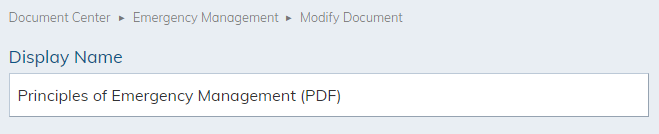

Name: |
Display Name: |
|

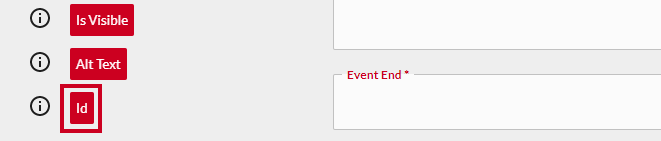

Id: |
Document Id: |
Document Center Action
The following table outlines how the fields map from the Configure step when creating an integration in Integration Hub to the fields in the Web Central Document Center module.
| Integration Hub Back-End | CivicEngage Central Document Center Back-End |
|---|---|
|
Name: |
Display Name: |
|

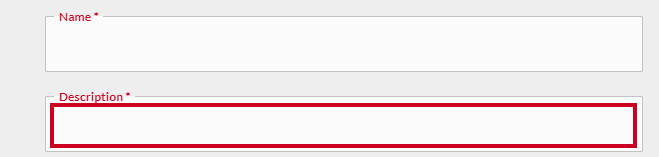

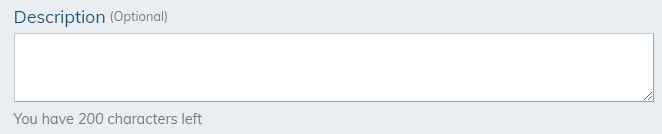

Description: |
Description: |
|

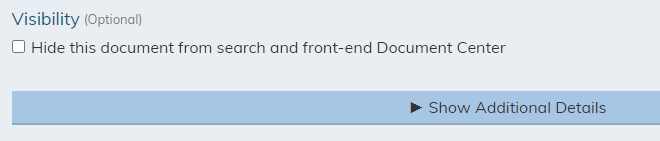

Is Visible (Boolean): |
Visibility: |
Required Fields in Document Center
- Display Name
- File Name
News Flash
News Flash Trigger
The following table outlines how the fields map in the Configure step when creating an integration in Integration Hub from the fields in the Web Central News Flash module.
| Integration Hub Back-End | CivicEngage Central News Flash Back-End |
|---|---|
|

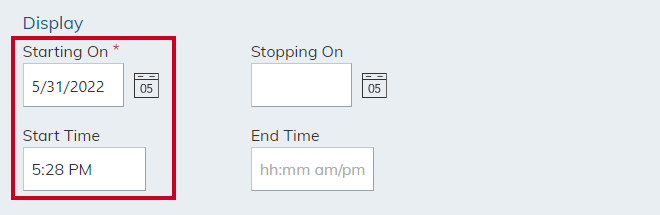

Start Date: |
Starting On Date and Time: |
|

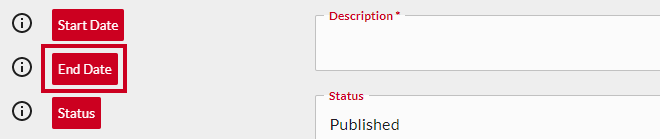

End Date: |
Stopping On Date and Time: |
|

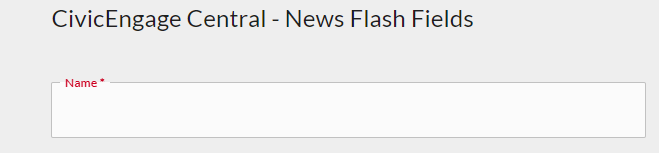

Name: |
Title (100 characters): |
News Flash Action
The following table outlines how the fields map from the Configure step when creating an integration in Integration Hub to the fields in the Web Central News Flash module.
| Integration Hub Back-End | CivicEngage Central News Flash Back-End |
|---|---|
|

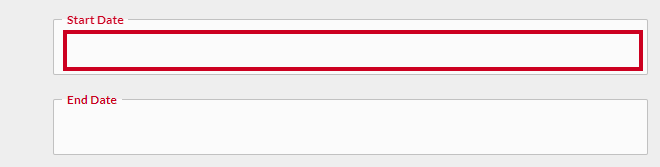

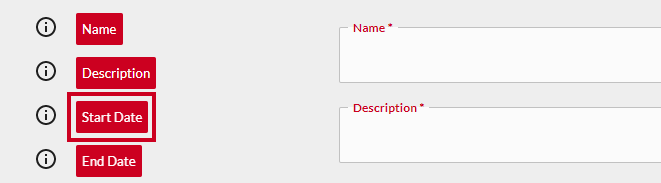

Start Date: |
Starting On Date and Time (required): |
|
End Date: |
Stopping On Date and Time: |
|
Name: |
Title (100 characters, cannot have 30 continuous characters): |
|

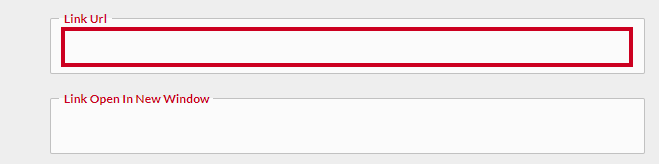

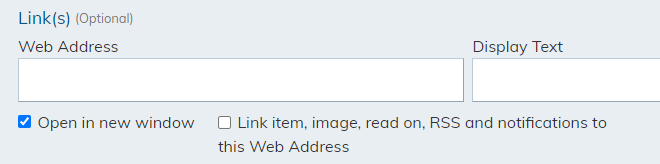

Link Url: |
Link Web Address: |
|

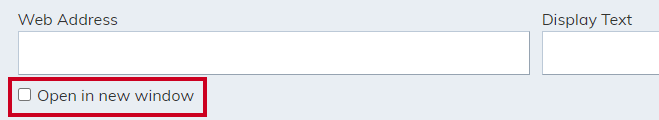

Link Open in New Window (Boolean): |
Open in new window: |
|

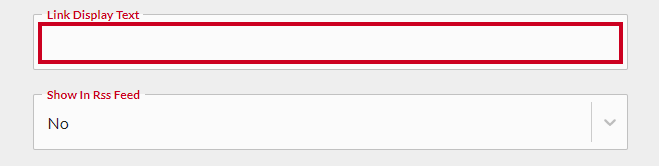

Link Display Text: |

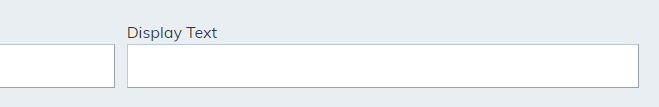

Display Text (50 characters): |
